China ATEX Explosion Proof IP68 Submersible Water Tank Level Sensor With 4~20mA RS485 Output wholesale

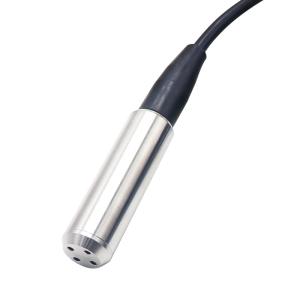

ATEX Explosion Proof IP68 Submersible Water Tank Level Sensor With 4~20mA RS485 Output

Ask Latest Price

Video Channel

Brand Name :WNK

Model Number :WNK8010-TT

Place of Origin :Anhui, China

MOQ :1pcs

Price :$35.00 - $50.00/Pieces

Payment Terms :T/T, Western Union, MoneyGram, Paypal

Supply Ability :2000 Piece/Pieces per Month level pressure sensor

Delivery Time :5-8 work days

Packaging Details :Each set into one individual carton, protection with foam. Then into master carton

Warranty :1 YEAR

Customized support :OEM, ODM

Pressure range :0...2~200 metres

Output :4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V

Accuracy :0.2%FS, 0.5%FS,

Power supply :12~36VDC

Protection class :IP68

Application :Rainwater, Drinking water,Wastewater, Sewage, Seawater

Housing Material :304SS, 316L

Operating temperature :-40~85 ℃

Type :Gauge

OEM service :OEM, ODM, customization available

Port :Shanghai/Ningbo

Contact Now

Add to Cart

View Product Description

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by
customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Applicable Media	Liquid, Water
Accuracy	≤ ±0.2%FS,
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68

Technical Parameters

ATEX Explosion Proof IP68 Submersible Water Tank Level Sensor With 4~20mA RS485 Output

Ordering Code

Dimensions - IP68 Sumbersible Liquid Level Sensor
